The Integrity of the Envelope: Mitigating Structural Fatigue and Surface Fissures

How to avoid facade cracking risks the commercial facade is a membrane under constant duress. Subjected to the relentless expansion and contraction cycles of thermal loading, the seismic shifts of structural settlement, and the corrosive influence of moisture, the exterior skin represents a sophisticated engineering challenge. Cracking is rarely the result of a single catastrophic event; it is, more often, the cumulative manifestation of neglected stresses, material incompatibilities, and a fundamental misunderstanding of the building’s movement capacity. When a facade fractures, it acts as a diagnostic indicator of systemic failure that extends far beyond the surface layer.

To design for resilience is to acknowledge that all buildings move. The rigidity of traditional construction materials often conflicts with the dynamic reality of a building frame that breathes, settles, and shifts. Successful envelope engineering requires a shift from viewing the facade as a static object to treating it as a kinetic system.

This analysis provides a rigorous examination of the mechanics of facade degradation. By moving beyond symptomatic treatment—such as the simple application of caulk—into the realm of structural prevention, architects and engineers can secure the longevity of their assets. Achieving a fracture-free envelope demands an unwavering commitment to the principles of movement management, material selection, and rigorous detailing that honors the physical forces at play within every large-scale construction project.

Understanding “how to avoid facade cracking risks”

The inquiry into how to avoid facade cracking risks often centers on the mistaken belief that high-strength materials are inherently more crack-resistant. In reality, rigidity is the enemy of durability. A material that is too stiff—such as certain high-strength mortars or rigid rendering systems—cannot accommodate the inevitable differential movement between the frame and the cladding. This lack of compliance forces the material to snap when subjected to thermal expansion or structural drift. Oversimplification, such as assuming that “expansion joints” can be placed arbitrarily, ignores the complex, localized stress concentrations that occur at geometry changes.

To truly understand how to avoid facade cracking risks, one must accept that the facade is a component of a larger, moving structure. Differential movement—where the building frame shrinks or expands at a different rate than the cladding—is the primary driver of cracking. When we ignore this, we fail to incorporate necessary movement joints or slip-connections. Furthermore, the issue is compounded by the moisture cycle. Water that enters a small, microscopic fissure expands when it freezes, turning a manageable cosmetic blemish into a severe, structural-level compromise.

The mitigation of these risks requires a holistic approach. It is not sufficient to select a superior cladding material; one must also design the support structure, the attachment methodology, and the interface detailing to act as a unified, flexible system.

Deep Contextual Background: The Evolution of Material Stress

How to avoid facade cracking risks historically, the use of thick, load-bearing masonry allowed buildings to move slowly and settle naturally, often without showing visible surface fissures for centuries. However, the 20th-century transition to lightweight, steel-framed skeletons shifted the burden of movement onto the exterior cladding. We went from buildings that were essentially solid blocks to buildings that are essentially hung curtains. This change necessitated the invention of complex, flexible attachment systems.

The failure to account for this transition is the primary culprit in modern facade pathologies. Designers often attempted to replicate the aesthetic of heavy stone using thin, rigid panels attached to a flexible frame. This created a profound “compatibility crisis,” as the frame moved and the facade, lacking the required flexibility, failed. Understanding this historical progression is vital: we are designing within a structural regime that is fundamentally different from the methods of the past, requiring a move toward precision, material compatibility, and engineering foresight.

Conceptual Frameworks and Mental Models How To Avoid Facade Cracking Risks

  • The Movement Accommodation Model: This framework mandates that every facade component must be able to move independently of the frame. By utilizing slip-joints and expansion gaps, the model prevents internal stress accumulation.

  • The Thermal Load-Path Analysis: Treats the building envelope as a thermodynamic machine. By tracing how heat moves through the facade, one can predict which areas will expand and contract the most, allowing for the precise placement of relief joints.

  • The Elastic-Plastic Continuum: Encourages the use of materials with varying degrees of flexibility. By strategically placing materials that can deform (plastic) next to those that provide structural rigidity (elastic), designers can create a system that absorbs stress without fracturing.

Key Categories of Facade Systems and Their Vulnerabilities

Facade Category Primary Cracking Risk Mitigation Strategy
Masonry Veneer Lack of movement joints Regular, vertically oriented joints
Metal Composite Thermal expansion/buckling Floating-fastener systems
EIFS/Render Base-coat rigidity Fiber-mesh reinforcement
Precast Concrete Shrinkage/Structural drift Flexible sealant joints

When deciding on a system, the choice often hinges on the tolerance for movement. A masonry veneer is inherently low-tolerance and requires extensive joint planning, while a unitized curtain wall provides high movement capacity through factory-engineered gasketing and interlock systems.

Detailed Real-World Scenarios and Failure Modes How To Avoid Facade Cracking Risks

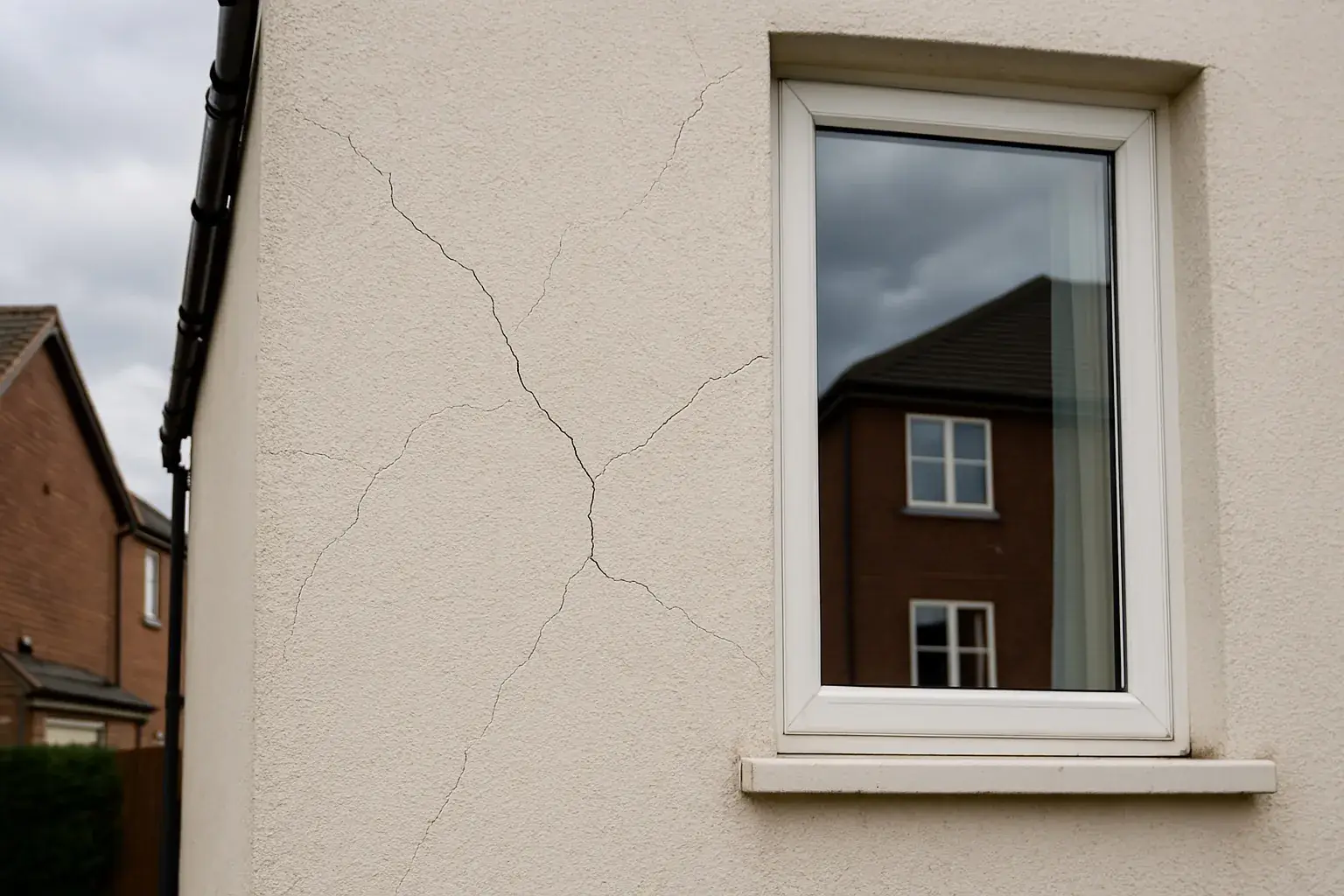

  • The Corner Concentration Scenario: Cracking frequently originates at the sharp corners of window or door openings. The failure mode occurs when stress is allowed to migrate diagonally across the wall plane. To manage this, designers must incorporate stress-relieving corner detailing that “decouples” the aperture from the surrounding wall.

  • The Parapet Stress Scenario: Parapets are exposed to the elements on three sides, leading to extreme thermal expansion compared to the building mass below. The failure occurs at the wall-to-parapet transition. The mitigation strategy is to isolate the parapet with a continuous through-wall flashing and an independent expansion joint.

  • The Differential Drift Scenario: In tall, flexible steel frames, the facade cladding is often subjected to “inter-story drift.” If the cladding is rigidly connected at both the top and bottom of a floor, it will buckle. The solution is to utilize “dead-load” anchors at the top and “wind-load” slotted connections at the bottom, allowing the frame to move without compressing the cladding.

Planning, Cost, and Resource Dynamics

The economic analysis of crack prevention is rooted in the avoidance of rework. The cost of a remedial repair—including the scaffolding, the labor, and the potential for water damage—is an order of magnitude higher than the cost of installing proper movement joints during the initial construction.

Phase Resource Intensity Cost Impact of Failure
Design/Engineering Moderate Minimal (Avoids cost)
Material Quality High Moderate (Increases cost)
Field Installation High Very High (Repair costs)
Post-Occupancy Low Catastrophic (Litigation/Damage)

Strategic planning suggests that we should allocate more resources to the engineering of joints and anchors, where the potential to how to avoid facade cracking risks is most significant, rather than over-investing in expensive, purely aesthetic materials.

Tools, Strategies, and Support Systems

  • Finite Element Analysis (FEA): Used during the design phase to simulate structural stress and thermal expansion on the facade.

  • Thermal Expansion Calculators: Essential tools for sizing expansion joints based on the coefficient of thermal expansion of specific cladding materials.

  • Mock-up Testing (AAMA 501.1): A critical strategy that requires contractors to build a full-scale test wall to verify the performance of joints and sealants under simulated load.

  • Digital BIM Models: Tracking the integration of structural and facade components to ensure that movement gaps are not “valued-engineered” away.

  • Moisture-Mapping Cameras: Providing a diagnostic tool to identify where moisture ingress is causing hidden internal damage that could lead to spalling and cracking.

Risk Landscape and Compounding Failure Modes How To Avoid Facade Cracking Risks

The failure taxonomy in facade engineering is rarely simple. A crack is often the final symptom of a sequence: poor installation of an anchor leads to localized stress, which is then exacerbated by thermal expansion, which is subsequently penetrated by water, causing the hidden structural substrate to rust. The corrosion of the structural steel backup is a classic compounding failure, as the rust exerts physical pressure, forcing the facade outward and creating ever-wider fissures. This cycle illustrates the danger of leaving any crack, no matter how small, unaddressed.

Governance, Maintenance, and Long-Term Adaptation

A facade’s life is defined by its governance. We must treat the exterior envelope as a critical infrastructure asset.

  1. Scheduled Review Cycles: Annual inspections focusing on the sealant integrity of movement joints.

  2. Trigger-Based Intervention: Any crack exceeding 0.5mm should be logged, monitored for growth, and assessed for depth.

  3. Layered Checklist: Verification of weep-hole clearance, assessment of sealant adhesion, monitoring of anchor rust streaks, and confirmation that all movement joints remain free of debris.

Measurement, Tracking, and Evaluation How To Avoid Facade Cracking Risks

Evaluating the success of a crack-mitigation program requires a shift toward quantitative evidence.

  • Leading Indicators: Successful passing of mock-up movement testing, the number of engineered joints installed per facade square meter.

  • Lagging Indicators: The number of crack-repair incidents, the cost of sealant replacement, and the findings from longitudinal structural audits.

  • Documentation: An “Envelope Maintenance Log” acts as a legal and operational record, detailing the movement history of the facade and the effectiveness of previous repair interventions.

Common Misconceptions and Oversimplifications

  1. “Caulk is a structural fix.” Caulk is a temporary sealant. If you are relying on caulk to hide a structural movement issue, the crack will return.

  2. “Stucco doesn’t crack if you mix it correctly.” Stucco is a rigid material; it will always crack unless it is properly reinforced and cut into panels.

  3. “It’s just a hairline crack.” No crack in a facade is “just” cosmetic. It is an invitation for water to enter the system.

  4. “Structural drift only happens in earthquakes.” Buildings move due to wind loads, temperature changes, and foundation settling every day.

  5. “Standard details are sufficient.” Every facade is unique.

Conclusion How To Avoid Facade Cracking Risks

Understanding how to avoid facade cracking risks is fundamentally an exercise in respecting the inherent dynamism of the built environment. Buildings are not statues; they are complex, moving assemblies that require careful, engineered accommodation for stress. Mastering the avoidance of cracking risks is the hallmark of the professional who understands that the true quality of a building lies not just in its appearance, but in the structural integrity of its skin.
